Compact strength. Exceptional as standard.

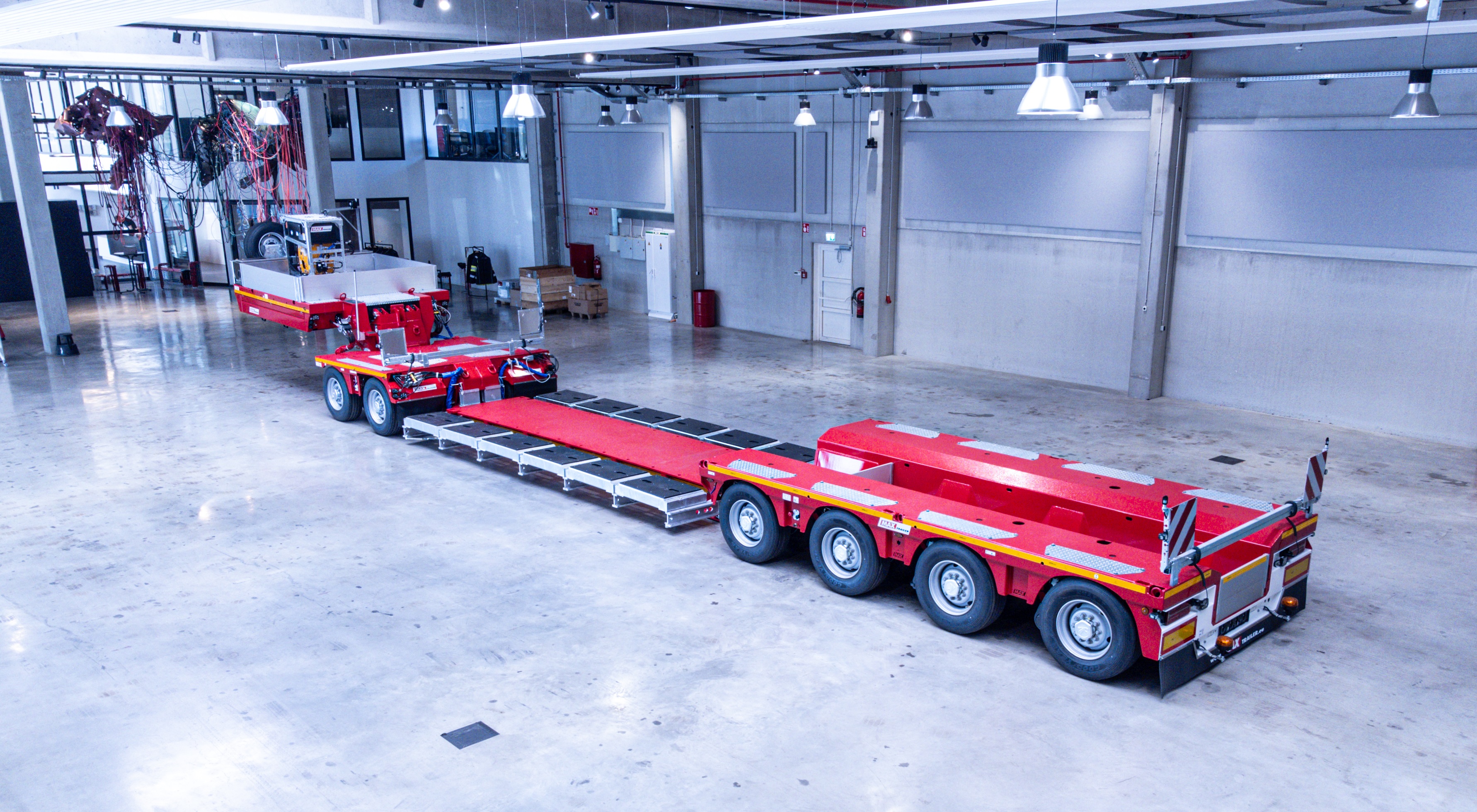

With the MAX710 lowbed semi-trailer MAX Trailer is extending its product series in the higher payload segment. The vehicles with six to eight axles set new standards in efficiency and price/performance ratio. Particularly compact, powerful and weight-optimised.
The MAX710 consists of a gooseneck, a removable front bogie with 2 or 3 axles, a lowbed – as an excavator deck or with outer beams – and a rear bogie with 4 or 5 axles.Â
The gooseneck offers a technical fifth wheel load of 38 tonnes.Â
When looking at the front bogie, the eye-catching compactness stands out in particular.Â
There is a choice of two extendable lowbed variants:Â the excavator deck with adjustable mattresses and the lowbed with outer beams and fixed loading floor.
A newly developed bolt coupling is integrated into the rear bogie, which is more compact than comparable models and thus enables further length gains.
Â
Â
The MAX710 lowbed trailer can be utilised in the following areas of use:
AVAILABILITY
A fully equipped toolbox
USEFUL FEATURES TO FACILITATE YOUR DAILY WORK
The removable gooseneck
allows to load construction machinery from the front side of the lowbed.
The front bogie
can be chosen with 2 or 3 axles and is characterized by its eye-catching compactness.
The rear bogie
includes a newly developed bolt coupling and can be chosen with 4 or 5 axles.
The excavator bridge
is equipped with adjustable mattresses and scores with a minimum ground clearance.
The lowbed with outer beams
has a loading platform with fixed floor and ensures an optimum stability.
CLEVER OPTIONS TO BUILD UP YOUR TRAILER
Control panel at the gooseneck protected by a cover.
Radio remote control:
- Control for the remote steering including optical realignment signal. Additional to the cable remote.
- Control for lifting and lowering of the suspension of the bogies.
- Control for lifting and lowering of the gooseneck.
1 pair of loose HeProLen ramps with grip strips 1,200 x 450 x 50/400 mm
Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles. (without connection to the tractor).
1-cylinder Hatz diesel engine (Silent Pack) with electric starter.
Aluminium sideboards, insertable in gooseneck.
Excavator trough at rear bogie closed with a screwed plate at front and rear.
Multi-coupling hydraulic connections in the vicinity of the lowbed hook receptacle.Â
3 hook-in intermediate platforms, moveable on the extension tube of the excavator deck. Load capacity dependent on widening.Â
Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump.Â
1 LED working spotlight on left and right on the rear panel of the gooseneck
1 LED working spotlight on left and right on the rear of the front bogie
Four warning signs, approx. 423 x 423 mm and extendable by 2,000 mm, with an LED position light and holder for rotating beacon.
2 tool boxes INOX on the left and right of the gooseneck ± 855 x 340 x 390 mm.
Reversible label 1,200 x 400 mm „CONVOI EXCEPTIONNEL“
